Silver Swallow Miao Dao

The LK Chen Forge:

This Broadsword was forged by LK Chen, a forge that specializes in the recreation of ancient Chinese weapons featuring authentic dimensions, weight, balance and handling.

LK Chen weapons are all designed for cutting purpose. You can train cutting with rice straw mats or bamboo targets.

The Silver Swallow Broadsword:

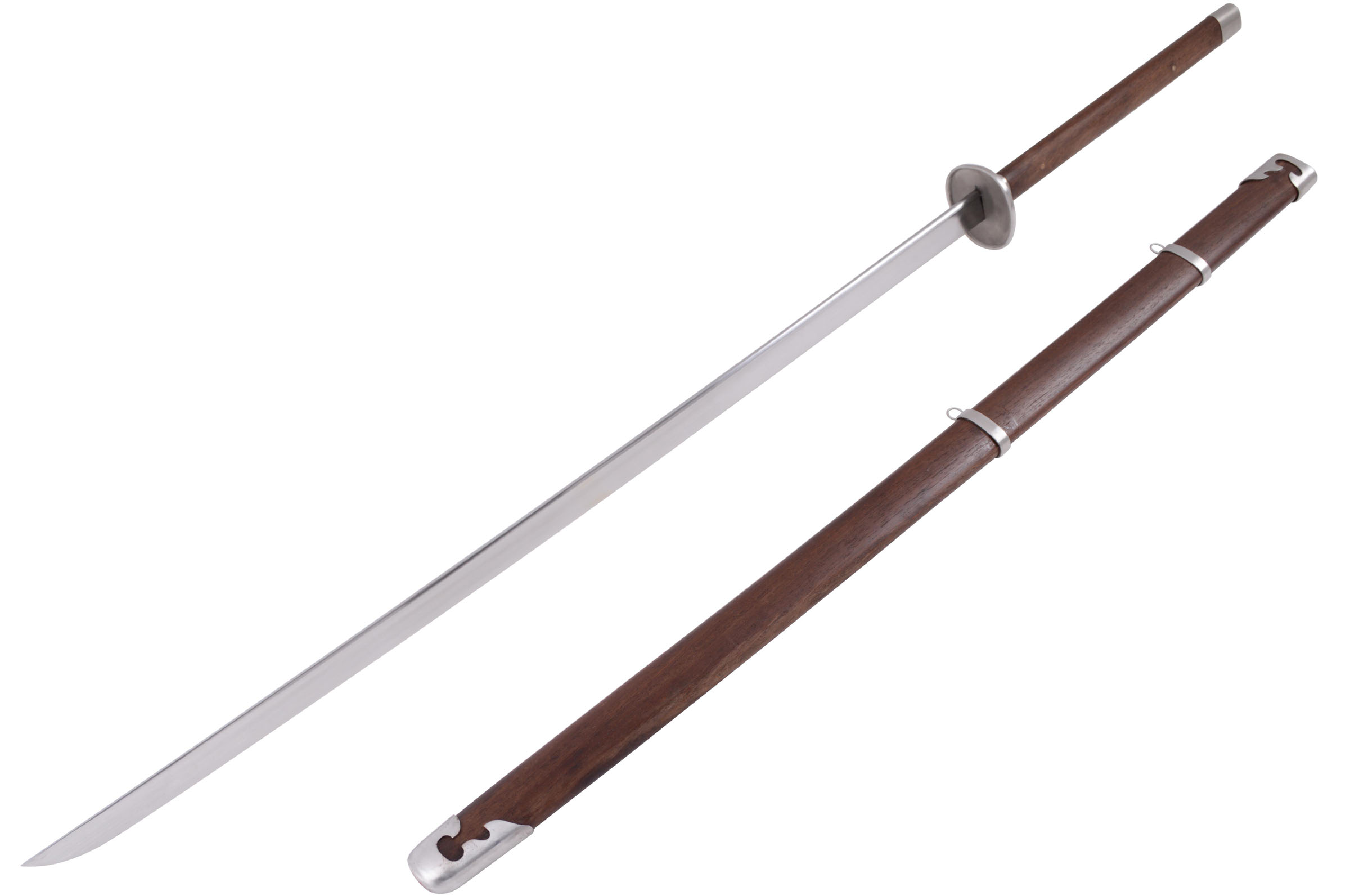

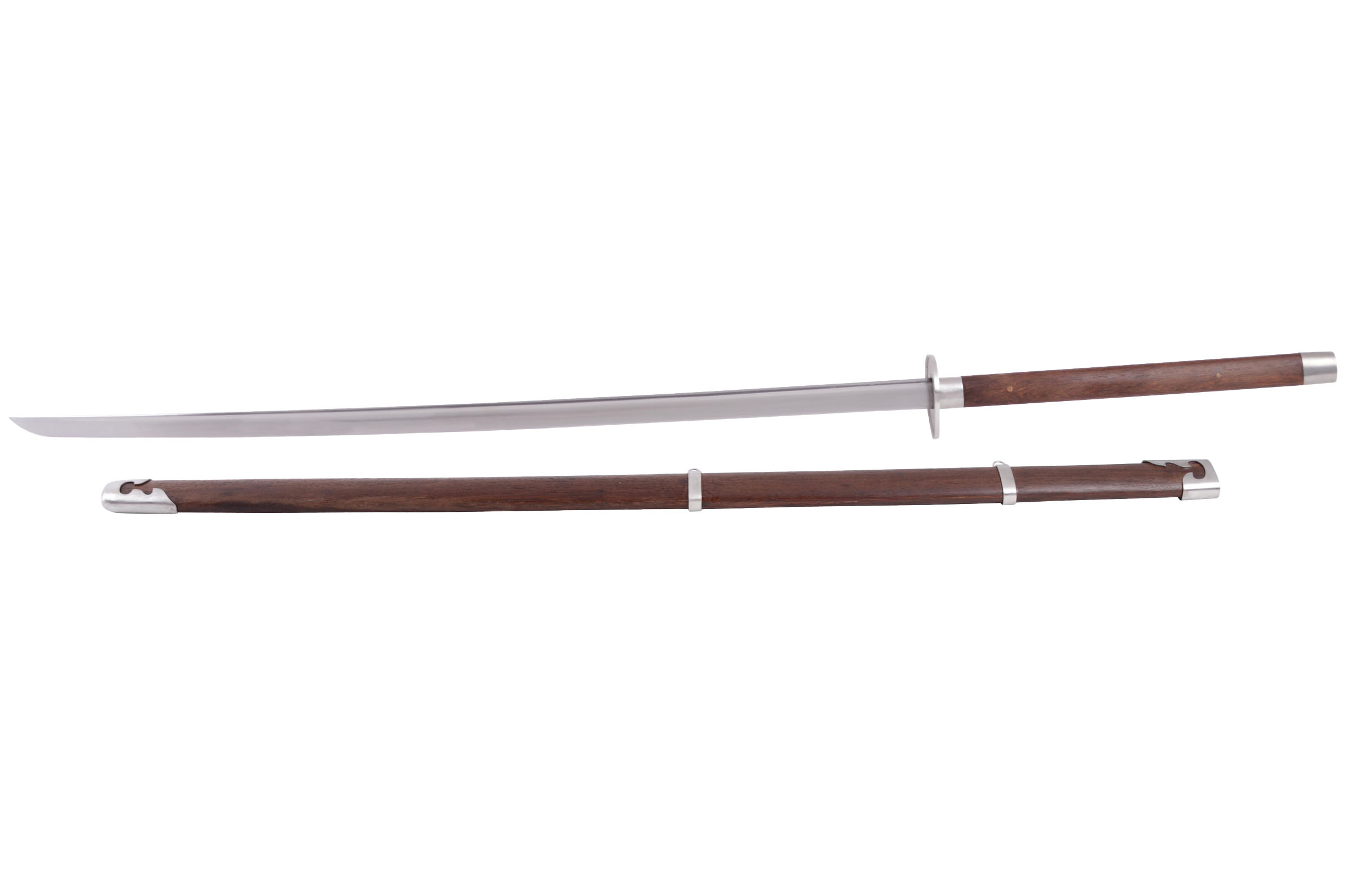

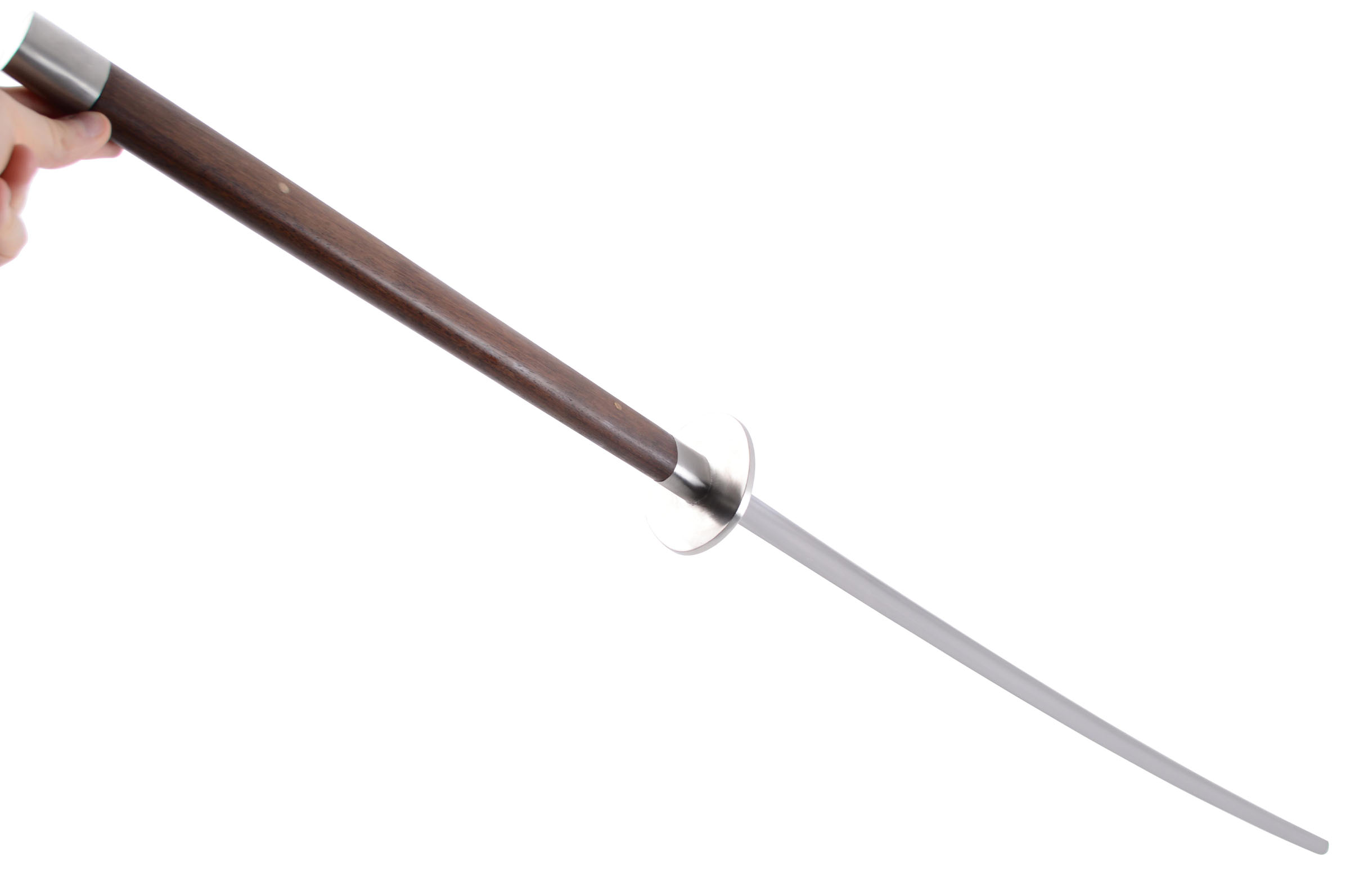

Broadsword with a slender, curved blade in an elegantly designed sheath.

The Silver Swallow is a tribute to a long tradition of long Chinese Broadswords, which began in the Ming Dynasty and ends with the Miao Dao martial arts sabers of the 20th century.
The broadsword's dimensions are as close as possible to those of the Da Dao of the early Ming dynasty and the long broadswords of the Qing dynasty's green army.

Silver Swallow is suitable for military type exercises as documented in Ming Dynasty Broadsword manuals, but also for 20th century Miao Dao exercises.

This broadsword is suitable for two-handed wielding.

The thick spine cross section and smooth long handle follows the tradition of 20th century Miao Dao.

The fitting, finishing and final assembly of the sword is meticulously done by the experienced master craftsmen of LK Chen Forge. It takes a professional craftsman a full day to assemble a broadsword of this type with precision.

Caractéristiques de la Lame :

• Composition : GB 60Si2MnA High Carbon Manganese Spring Steel
  (Similar to AISI/SAE 5160 Spring Steel)
  Click here to access the complete Comparison list

• Blade length: 101 cm (39.76")
• Total length of the sword: 148 cm (58.3")

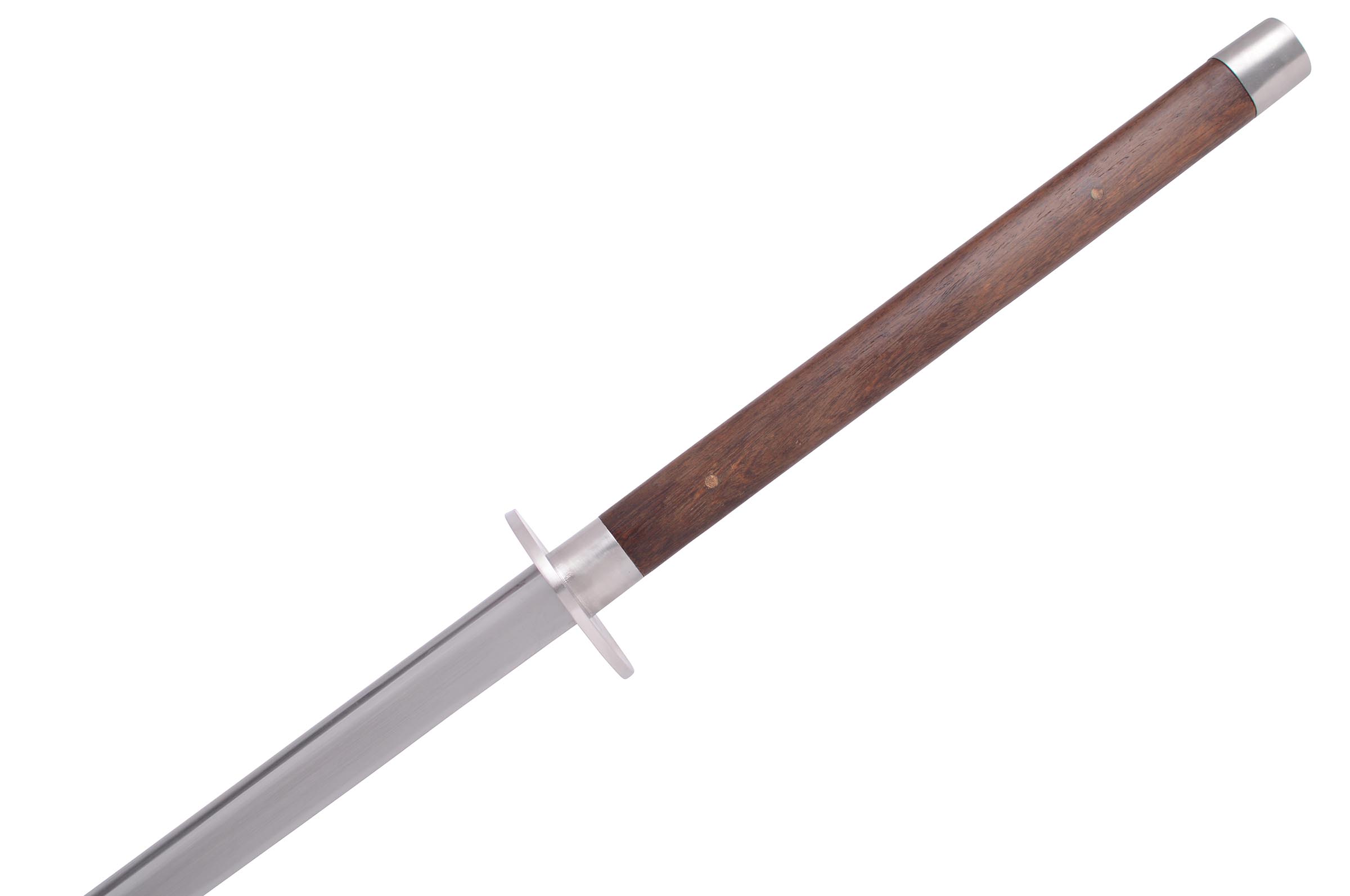

• Handle length: 47 cm (18.5")
• Weight of the sword: approximately 1554 g (3 lb. 6.8 oz)

• Blade profile: Pipe back round ridge with shallow hollow ground blade
• Sharpened blade with progressive taper:

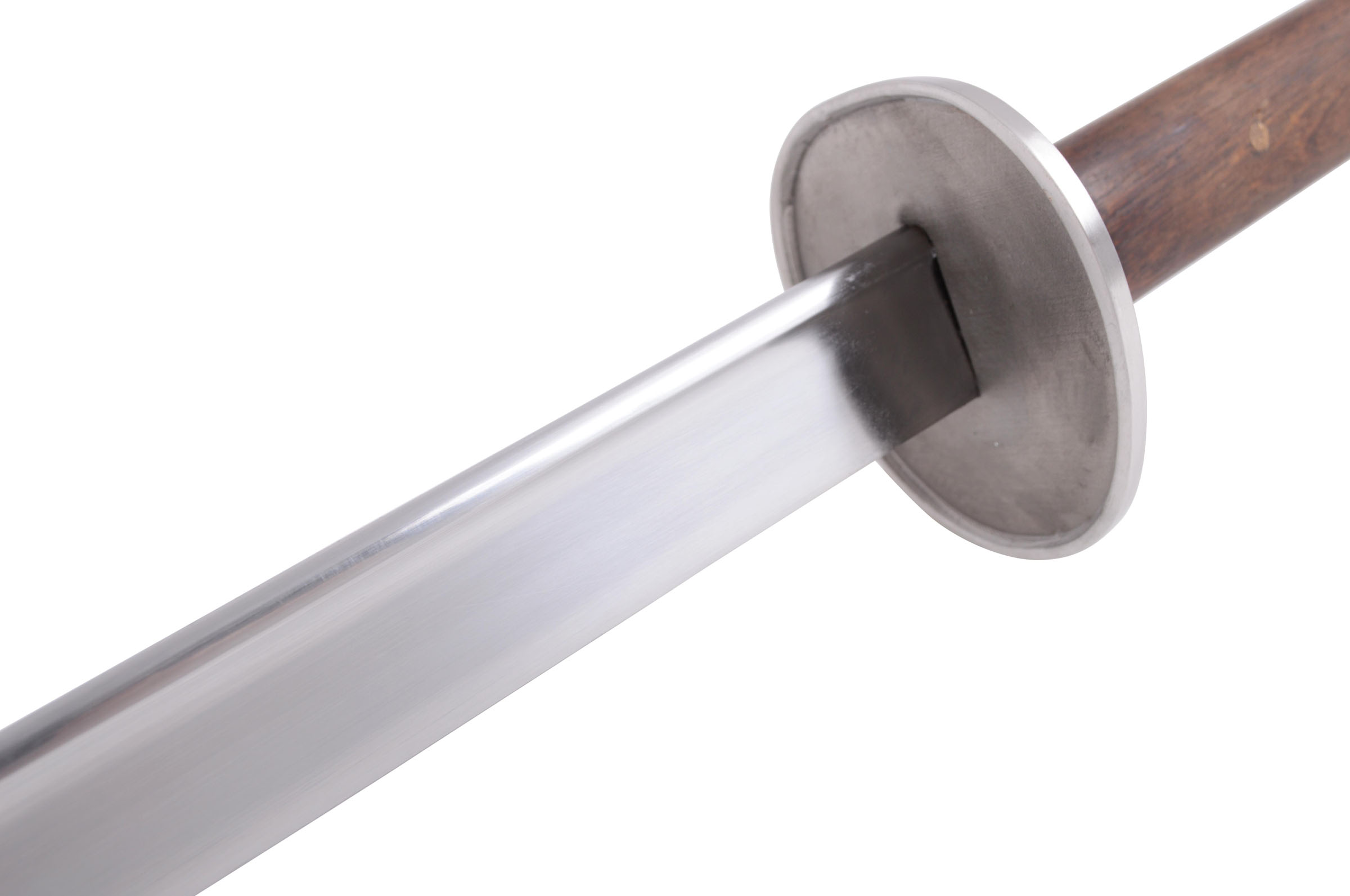

  • Width at the guard : 35 mm / Thickness: 9 mm
  • Thickness at the middle: 6,25 mm at 55 cm (21") from the guard (middle)

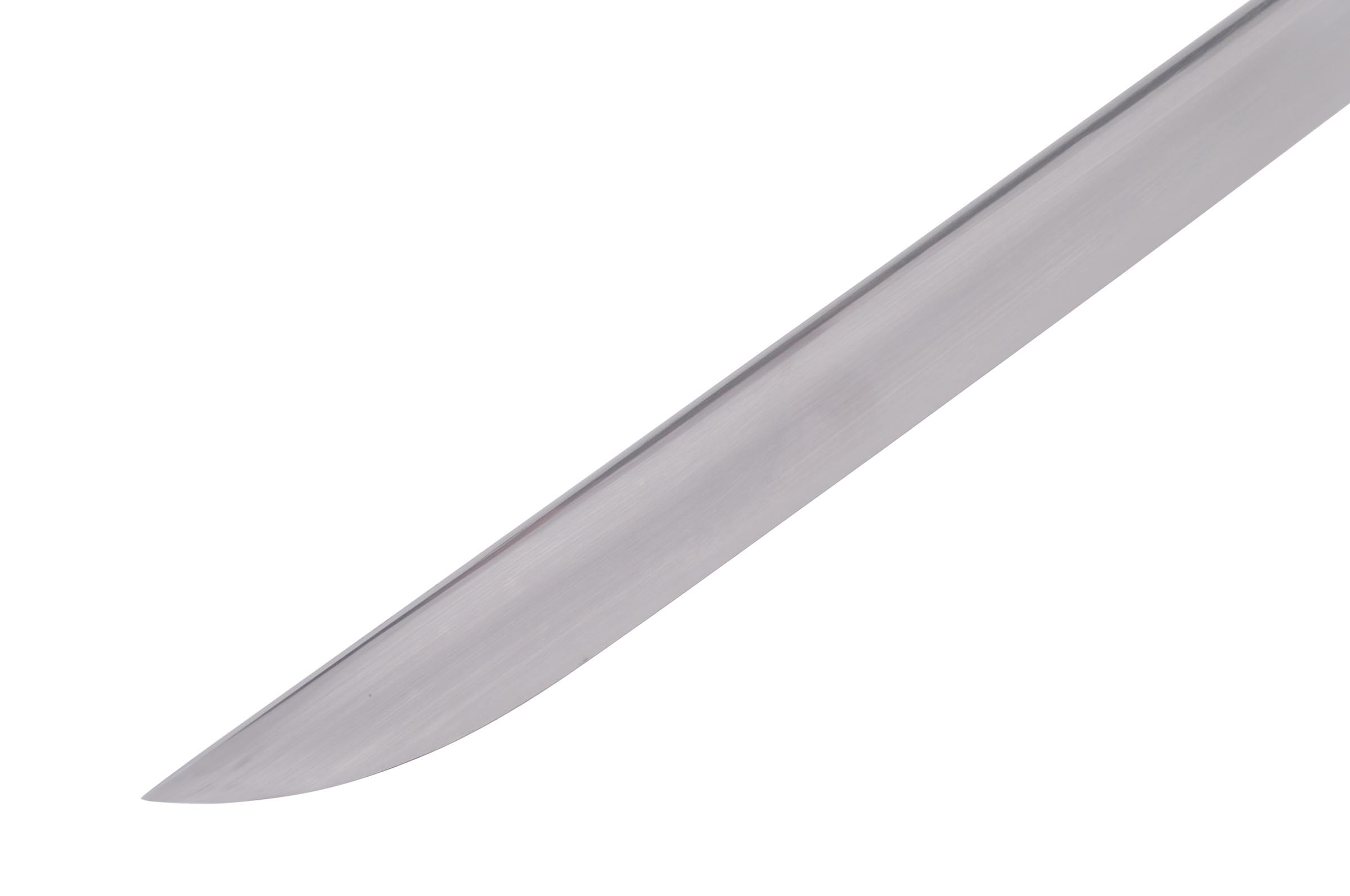

  • Width at the tip : 25 mm  / Thickness: 3 mm at 3,5 cm (1") from tip

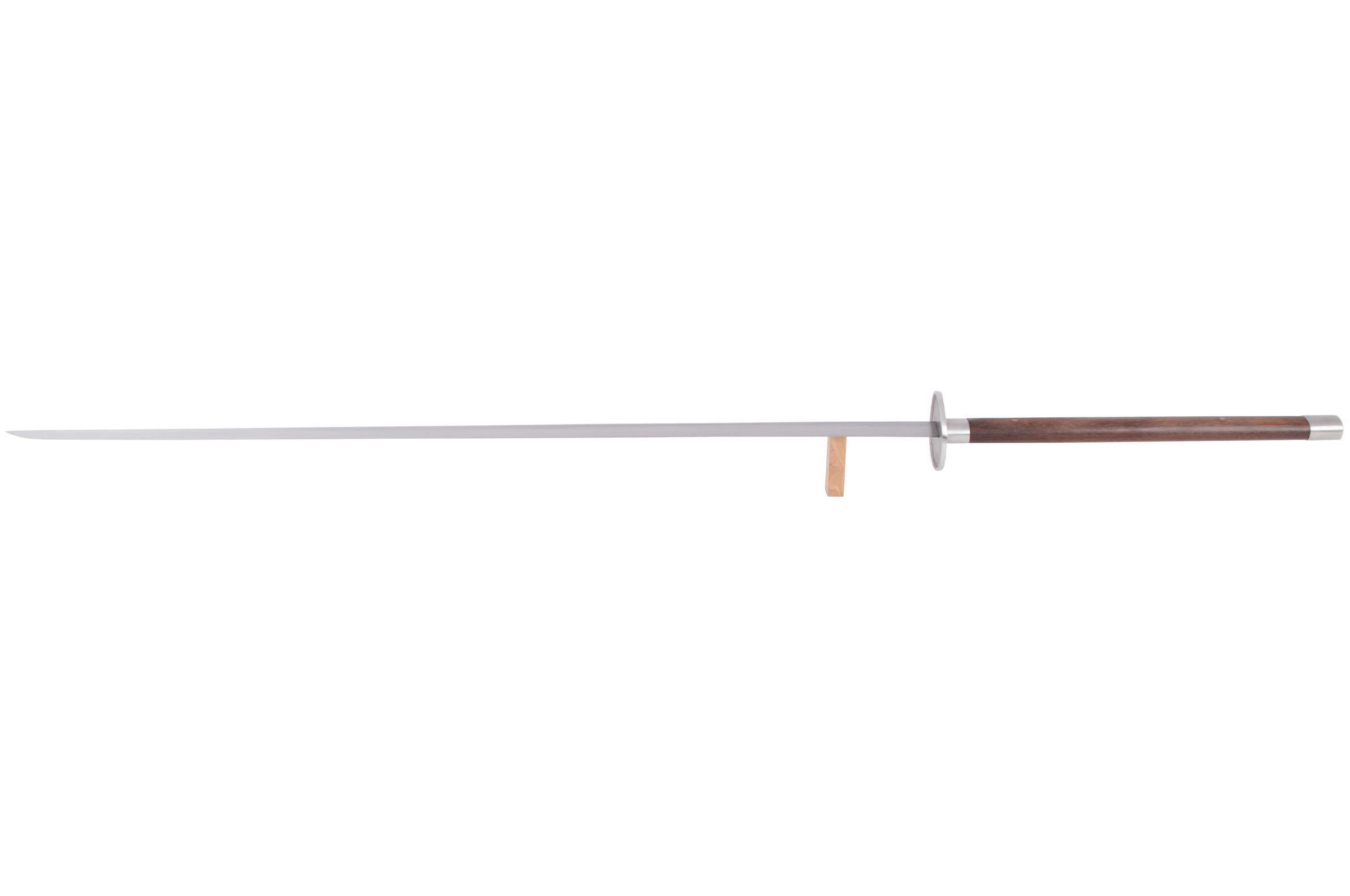

• Balance point: approximately 9 cm (3.54") from the guard

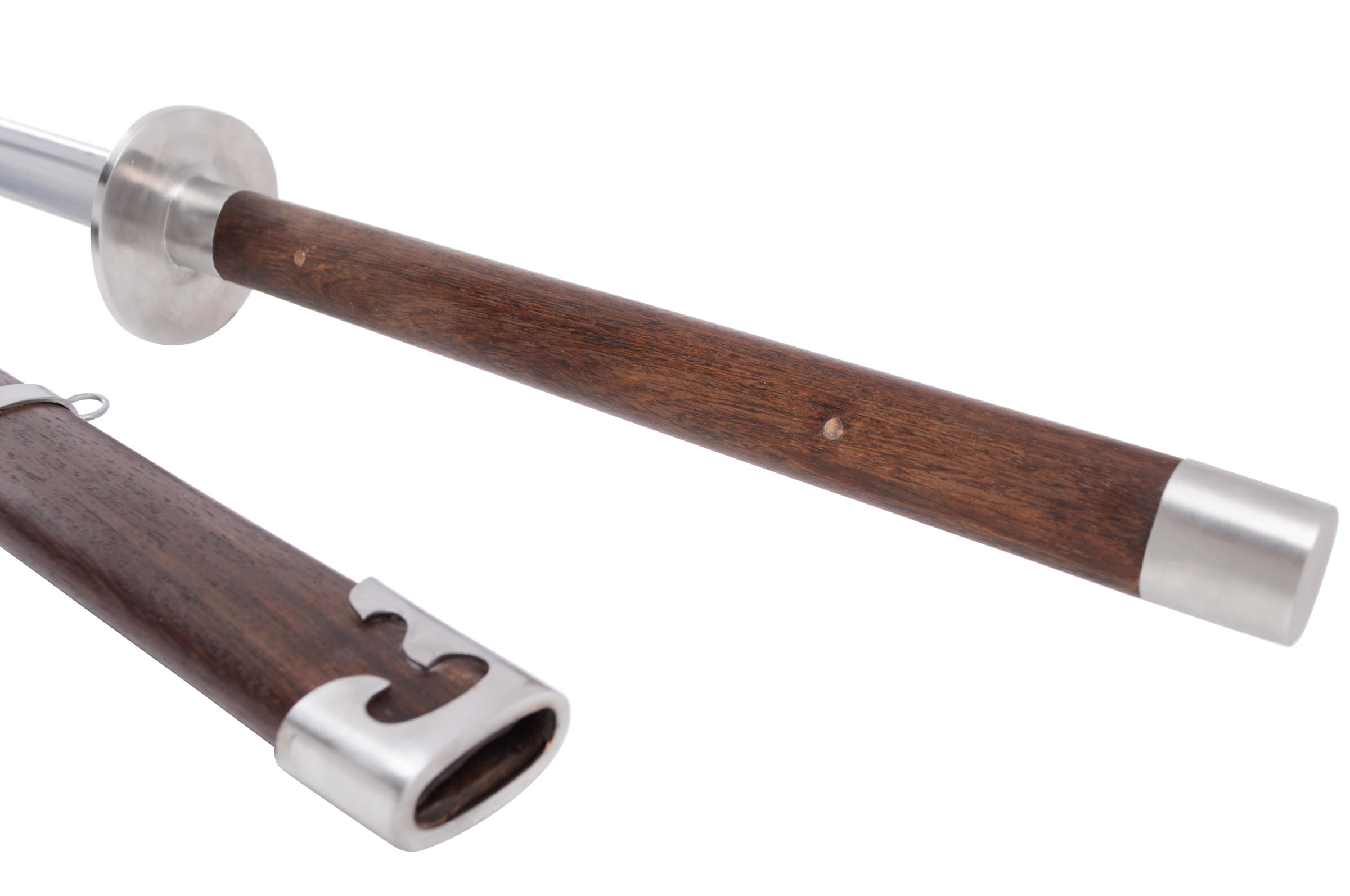

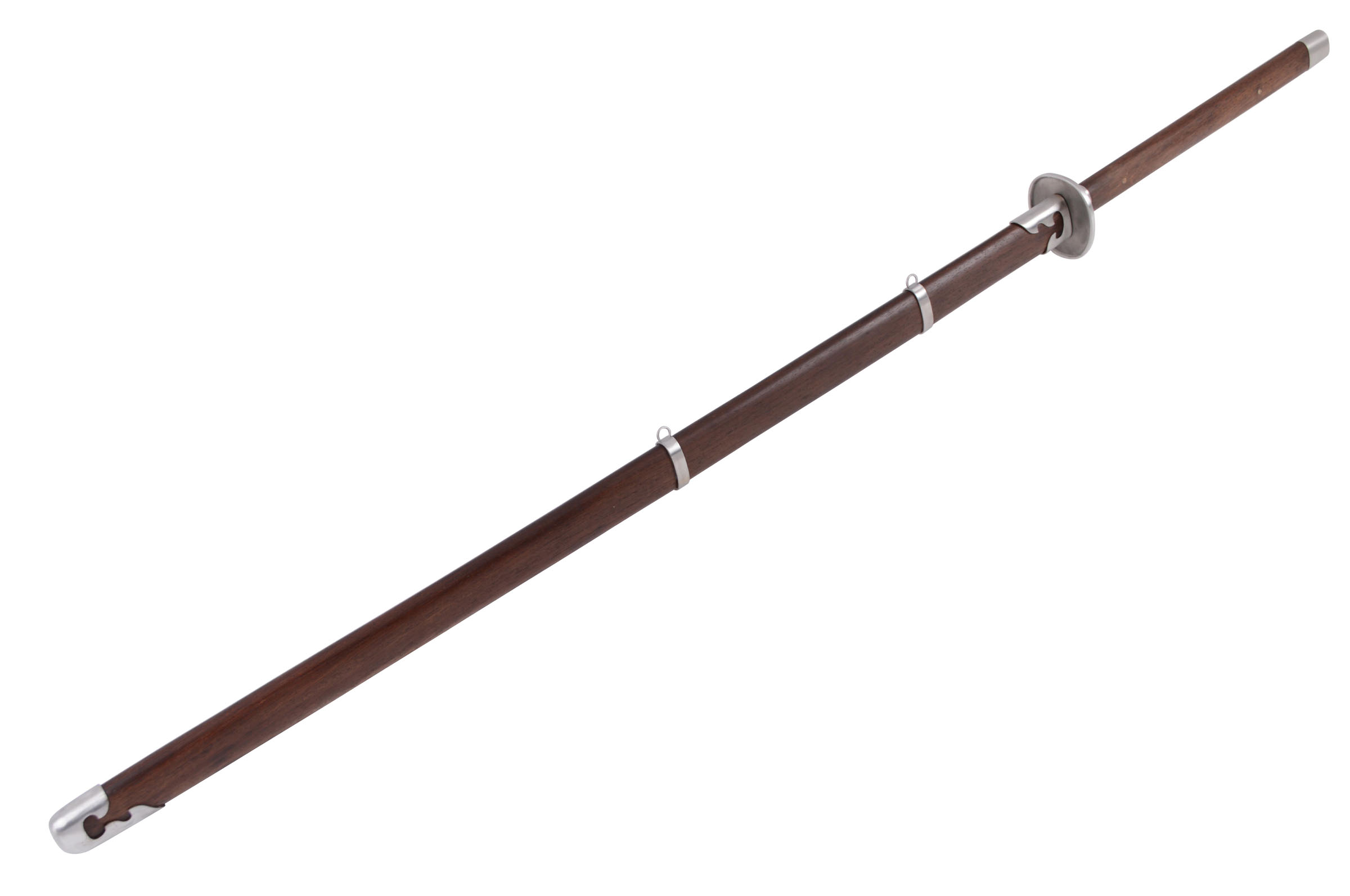

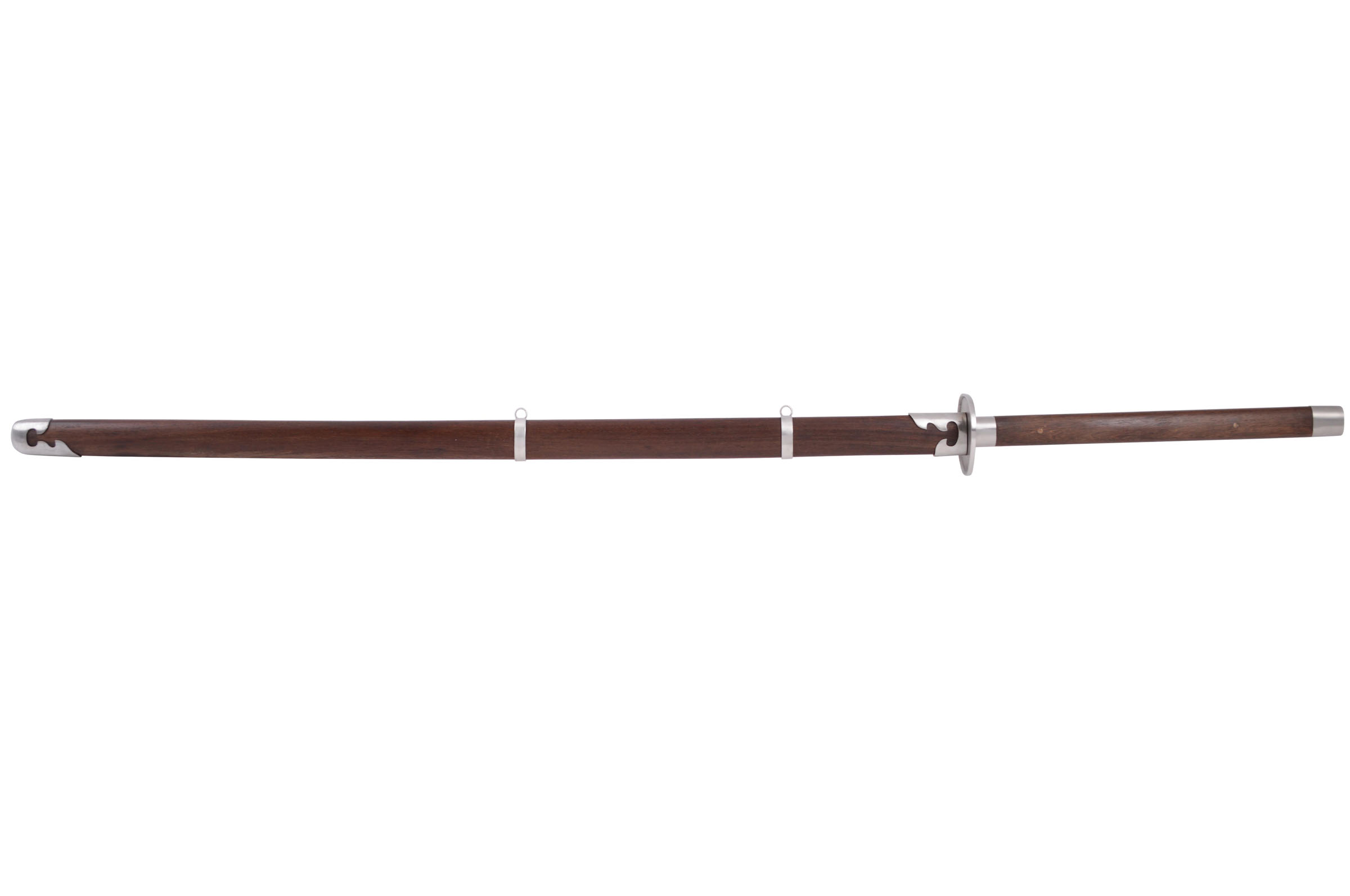

Scabbard:

• Composition : High quality Jichimu (Ormosia genus)
• Stainless steel ornaments

Heat treatment:

• Hardness: 54-55 HRC
• Hand polished to a smooth soft shine and a sharp sword edge
• Curves slightly when pressure is applied to the tip of the blade
• The Spring steel gives this sword great vibrations for Taiji practice
• The blade is sharper at the front and is less sharp near the guard for more effective blocking.

Ornements :

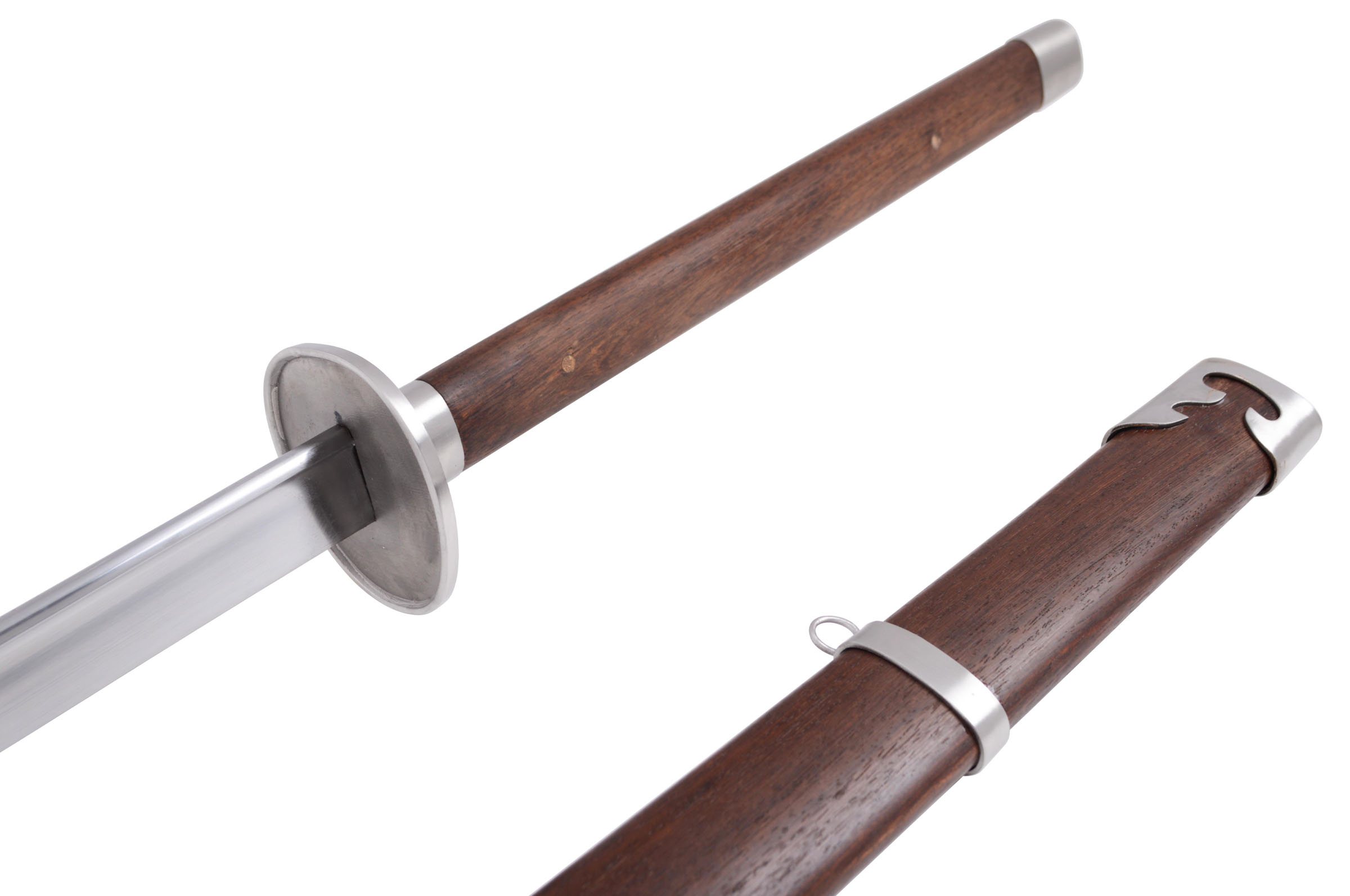

• Precision cast elegant stainless steel fittings
