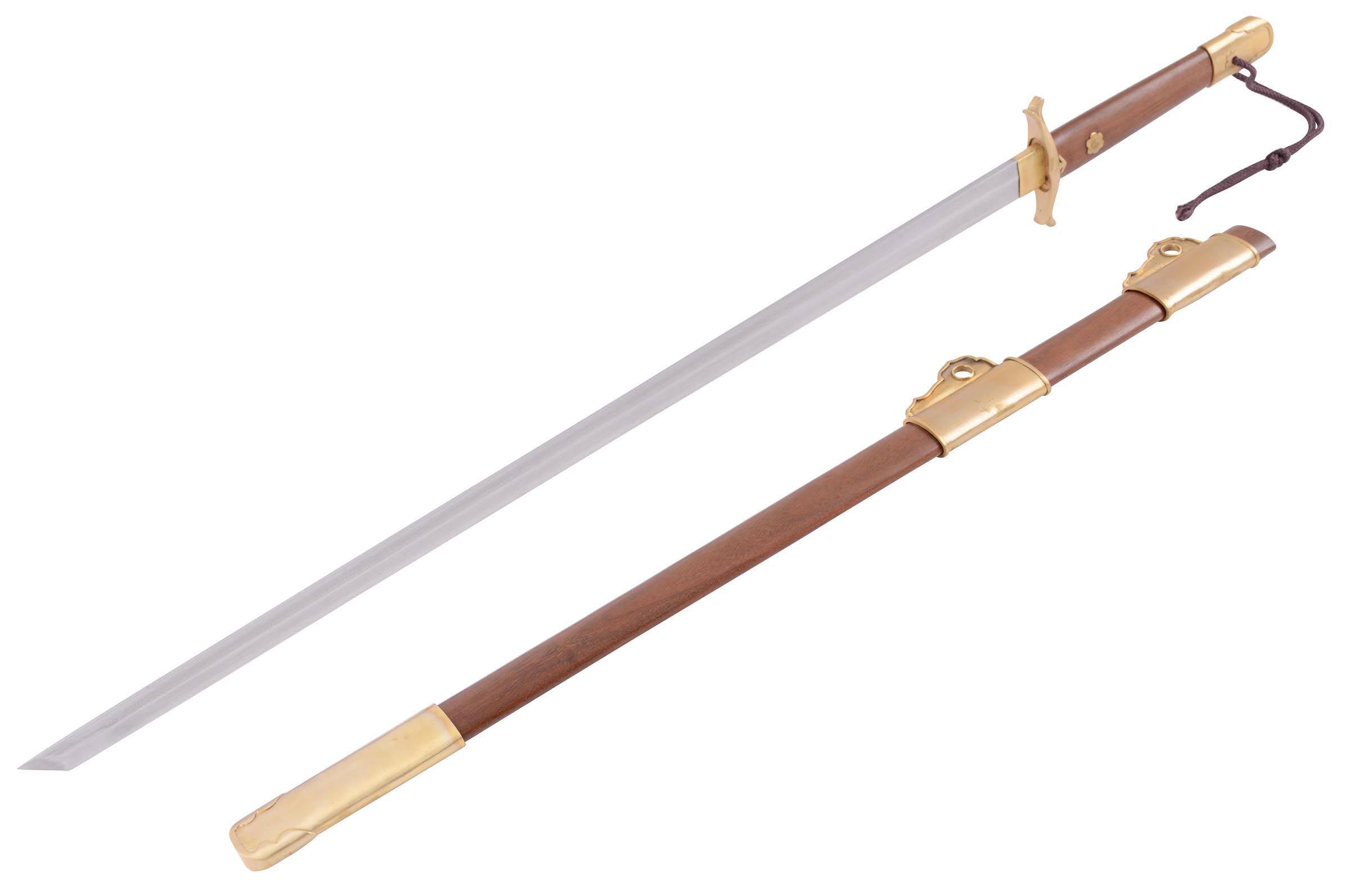

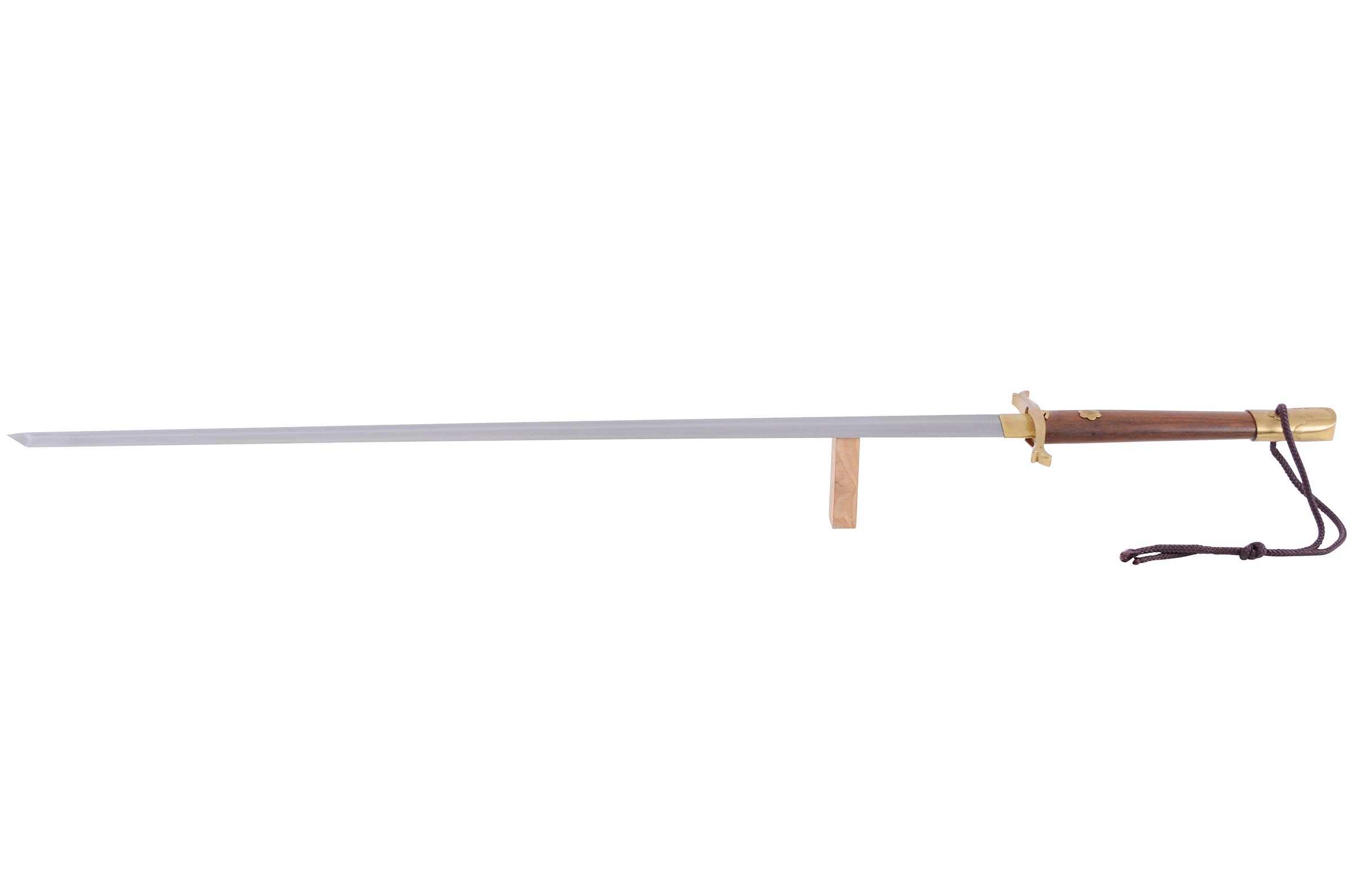

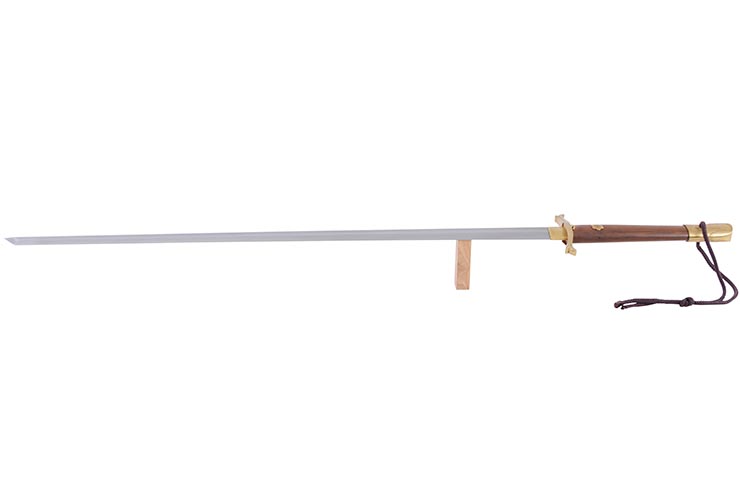

Palatial Tang Dao
The LK Chen Forge:
This Broadsword was forged by LK Chen, a forge that specializes in the recreation of ancient Chinese weapons featuring authentic dimensions, weight, balance and handling.
LK Chen weapons are all designed for cutting purpose. You can train cutting with rice straw mats or bamboo targets.
The Tang Dao Broadsword:

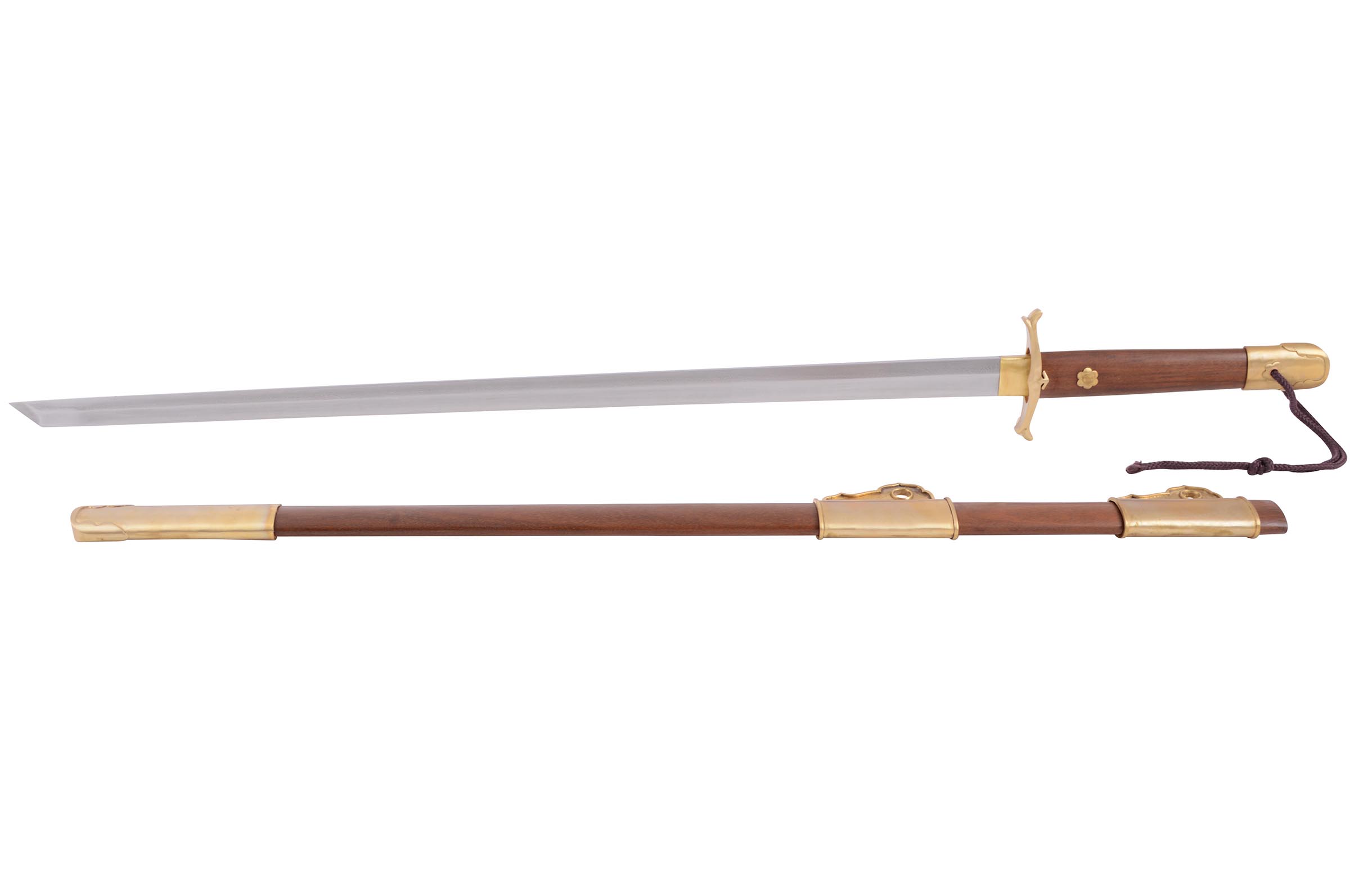

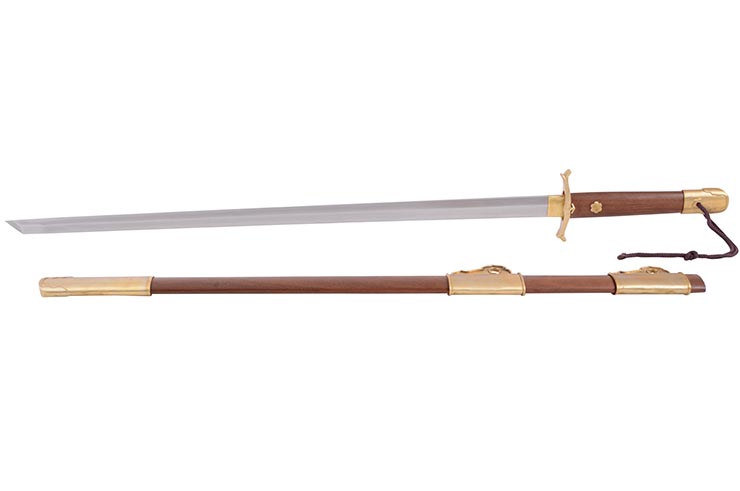

The Palatial Tang Dao is another celebration of the diversity of Tang Heng Dao, with a straight, chiseled blade profile.

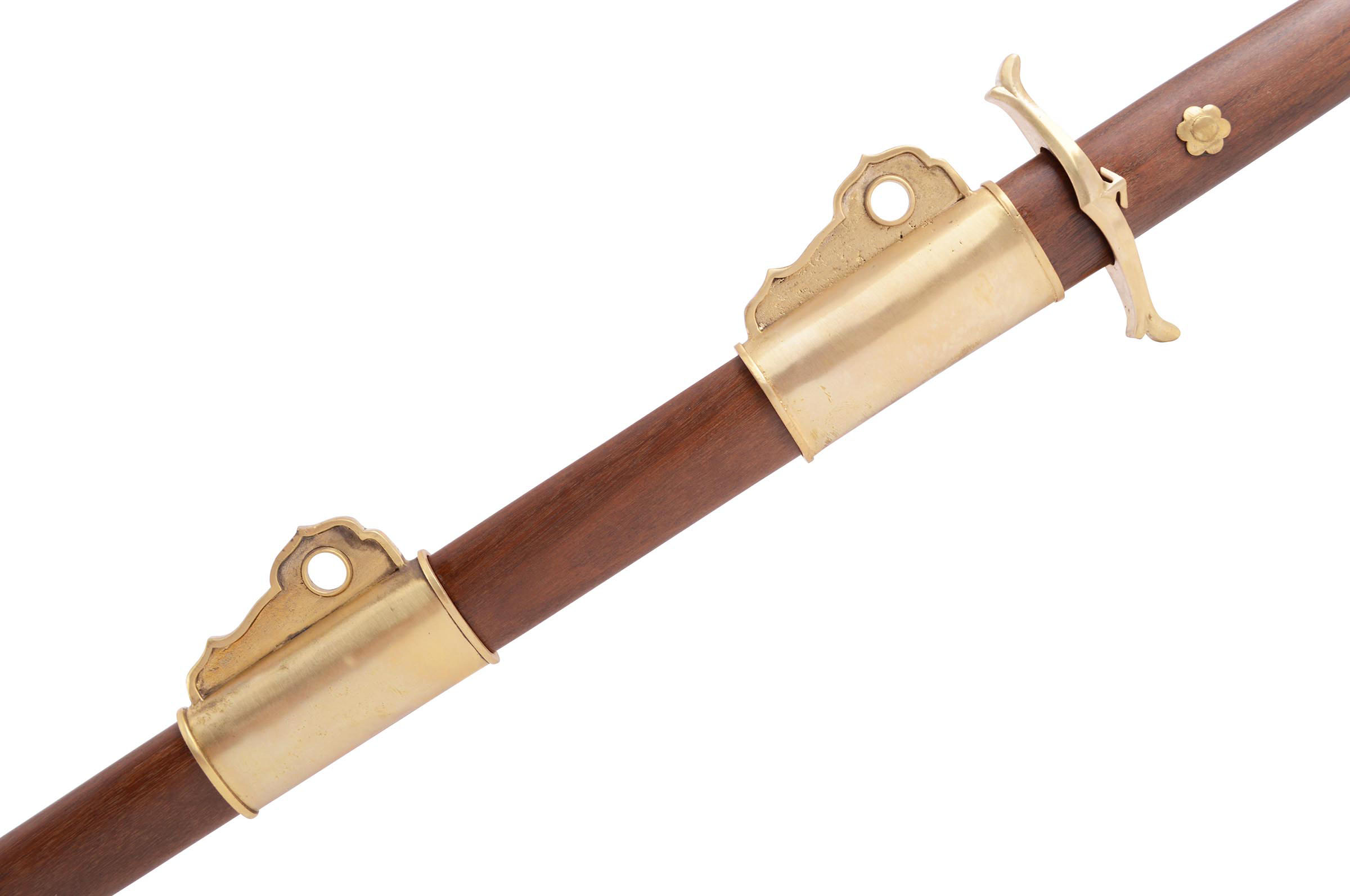

Like the military Tang Heng Dao, it is a straight one-handed Dao. The Dao's scabbard has a two-point suspension system influenced by Sassanian swords. It is a saber that can be used for fighting on foot and on horseback.
The Palatial Tang Dao was a powerful broadsword that was the standard sidearm of all imperial guards. The Heng Dao was expensive to make. As a costly military resource, it was forbidden to use the Heng dao as a funerary item. As a result, very few specimens have been discovered today. Fortunately, Heng Dao was researched by Japanese delegations and sent back to Japan as a treasure for the royal court.
Even today, these rare samples of Heng Dao are kept in Nara.
The design of the Palatial Tang Dao is based on a rare Tang Dao that belongs to a private collection.
The fitting, finishing and final assembly of the sword is meticulously done by the experienced master craftsmen of LK Chen Forge. It takes a professional craftsman a full day to assemble a broadsword of this type with precision.
Broadsword Characteristics:

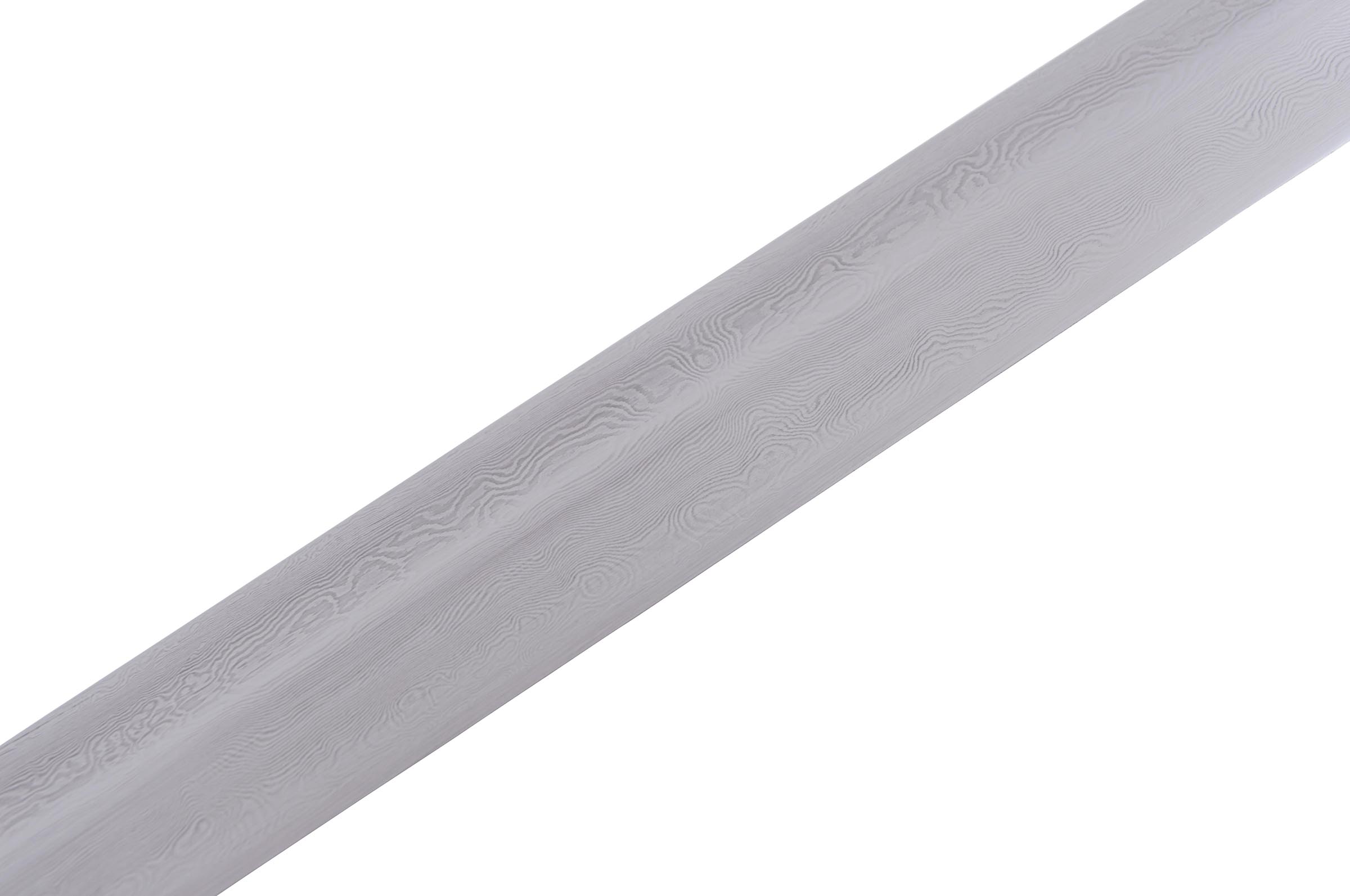

- Damascus steel blade (laminated steel)
- Blade Composition: 1060 Carbon steel (Medium / High carbon steel) reinforced with tungsten-vanadium T9 (anti-rust property)
Click here to access the complete Composition list
- Blade length: 73,91 cm (29,1")
- Total length of the broadsword: 95,25 cm (37,5")
- Handle length: 21,34 cm (8.4")
- Weight of blade alone: approx. 794 g (1 lb. 12 oz)
- Sword weight alone: approx. 964 g (2 lb. 2 oz.)

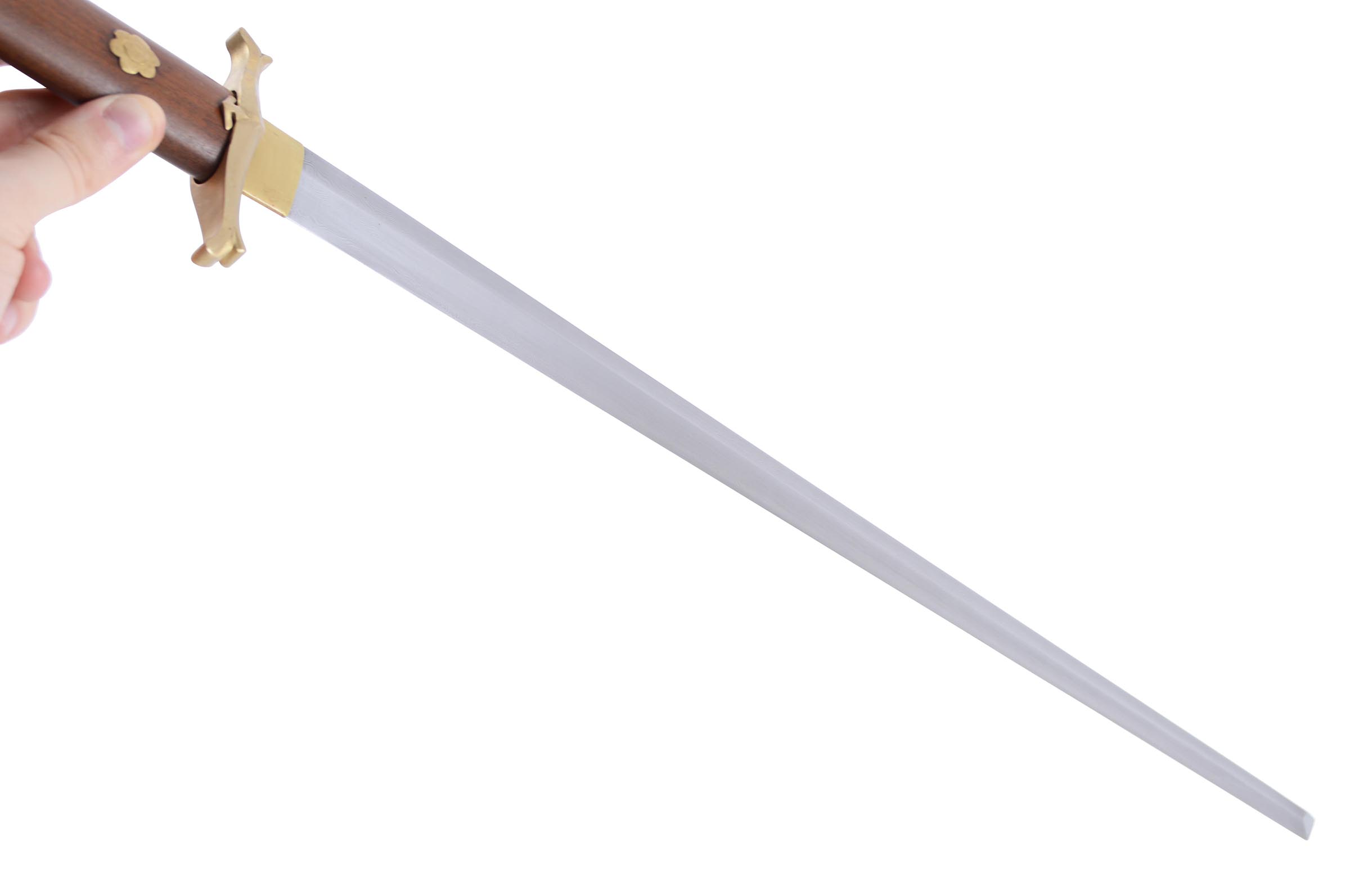

- Sharpened blade with progressive taper:
- Width at the guard : 3 cm (1.1") / Thickness: 7 mm
- Width at tip : 2.14 cm (0.84") / Thickness: 4 mm
- Balance point: 15,24 cm (6") from the guard

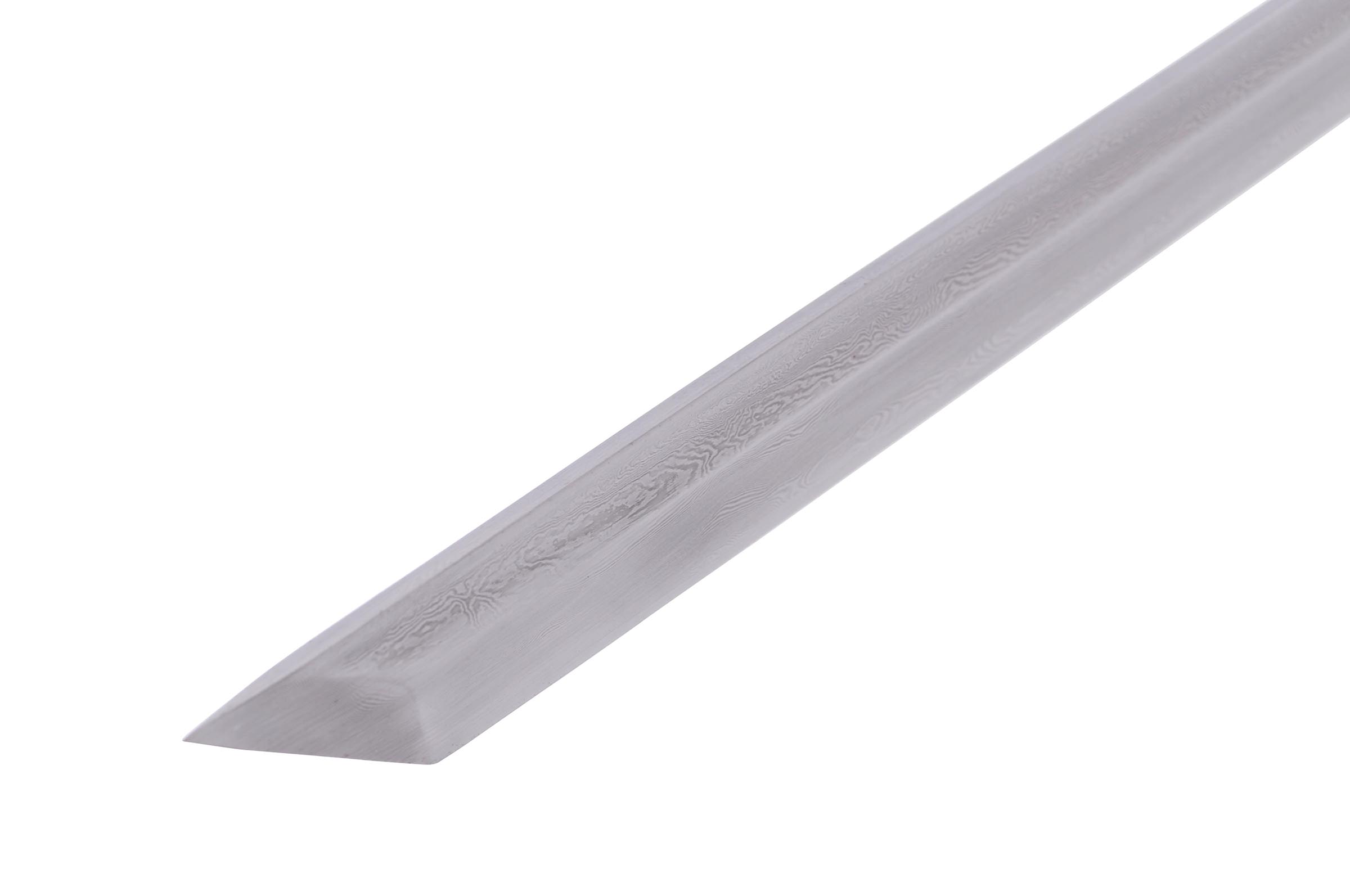

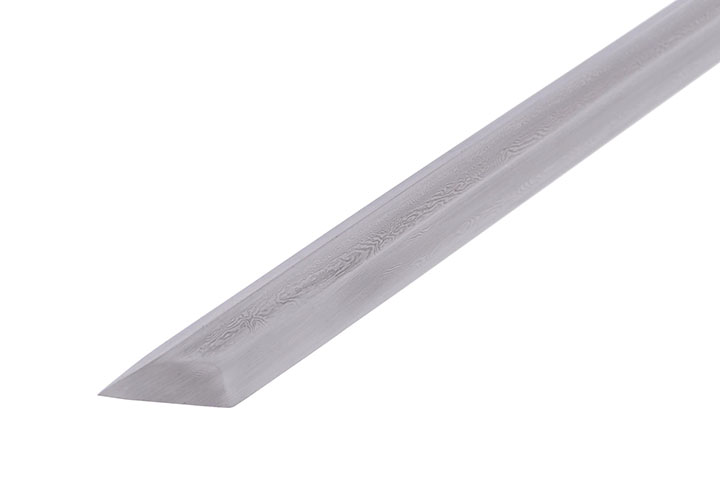

- Blade length wide profile: straight blade, beveled tip

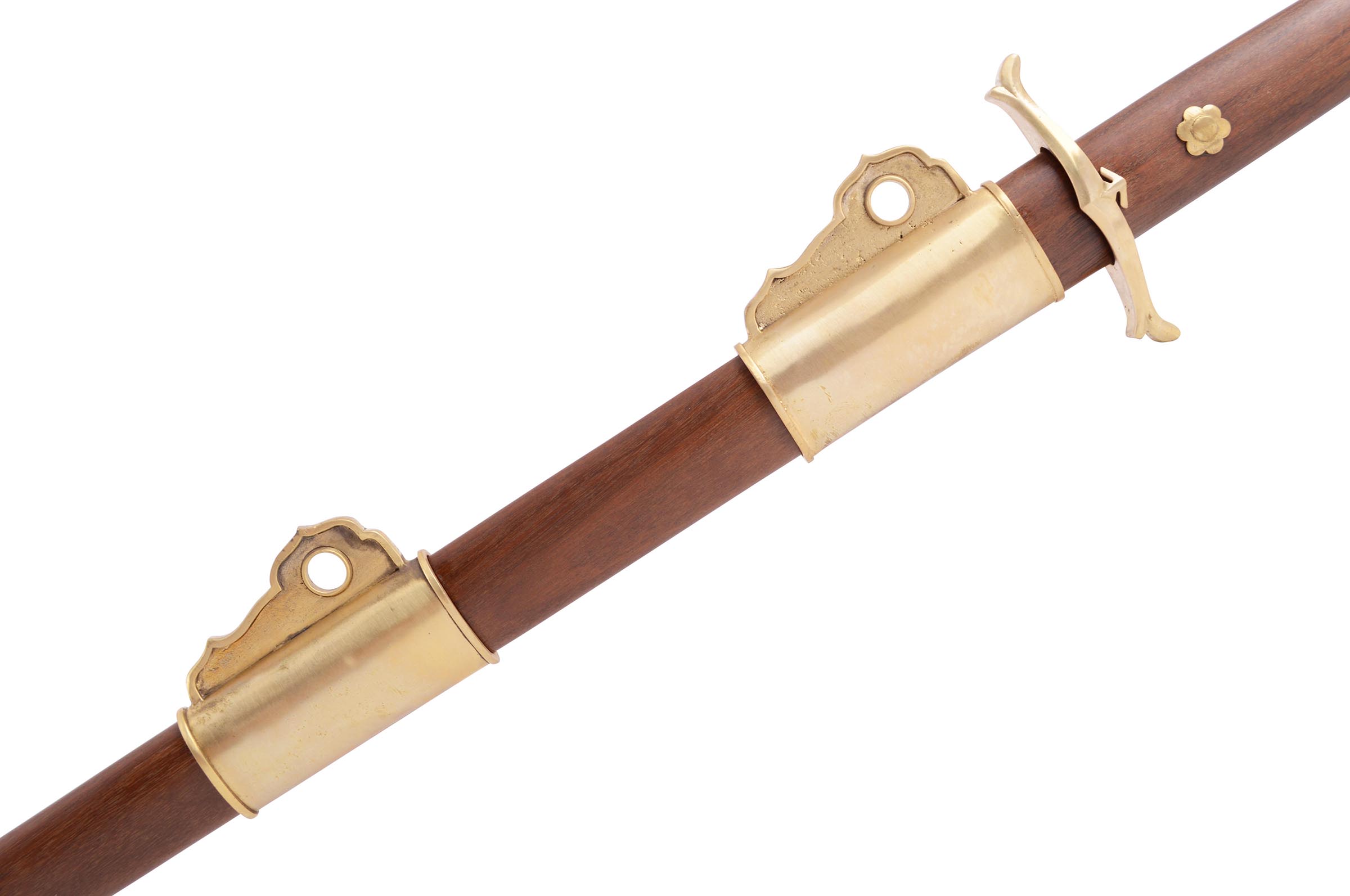

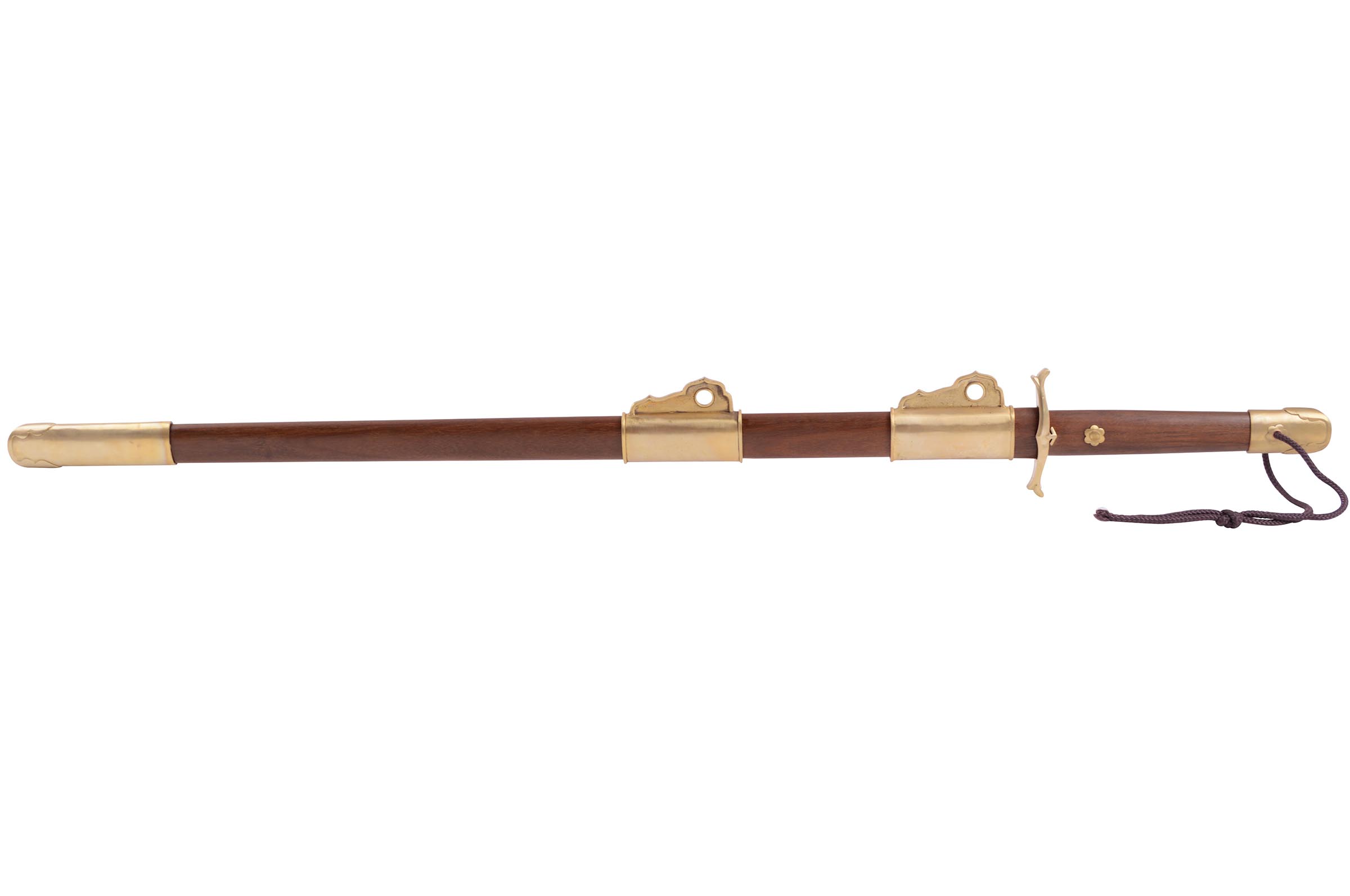

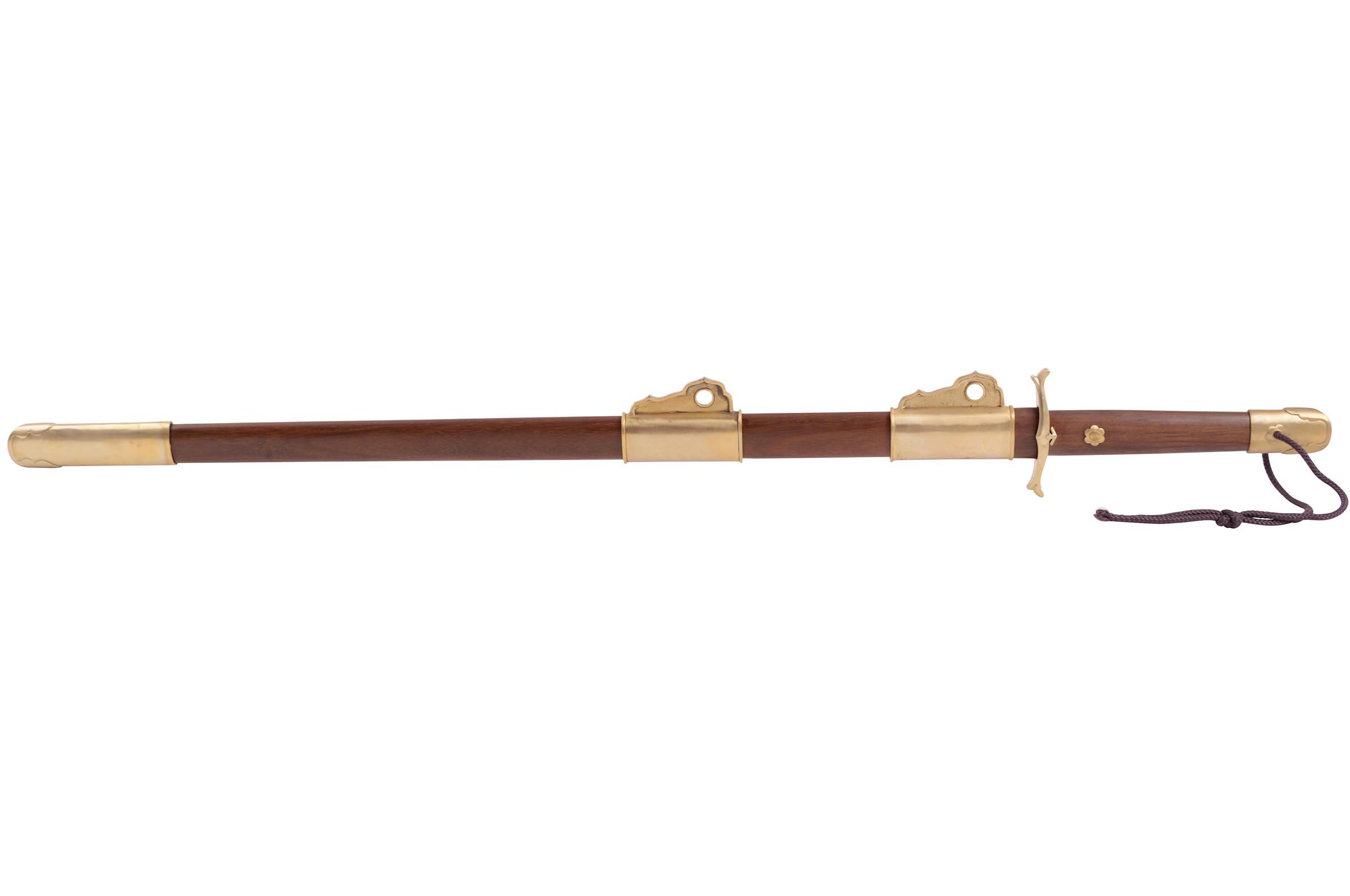

Scabbard:
- Composition : Rosewood scabbard
- Brass ornaments
Heat treatment:
- Straight Hamon temper
- Differential tempering in clay cladding for a hard edge
- Hand polished to a soft shine and a sharp edge
Ornements :

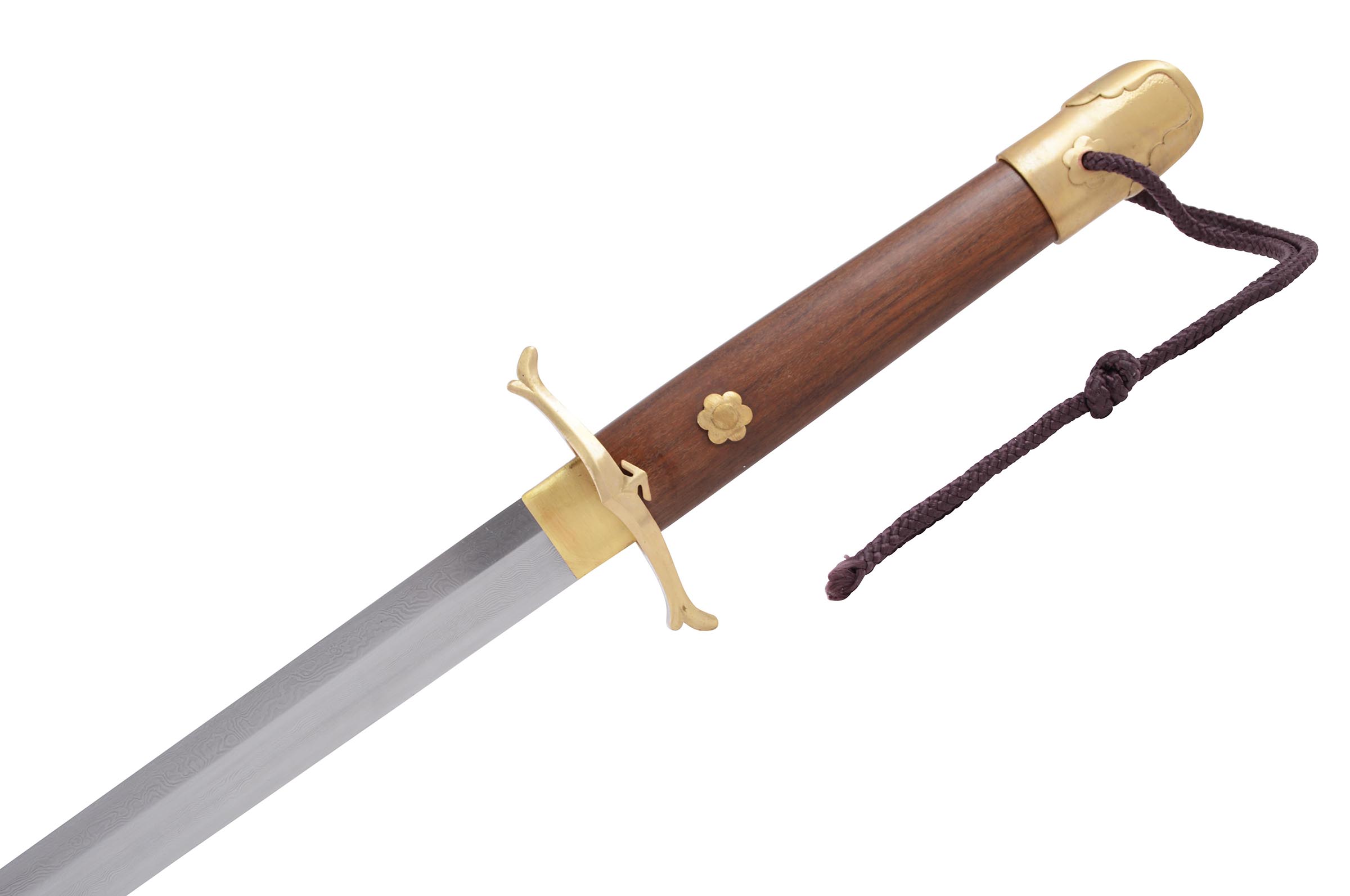

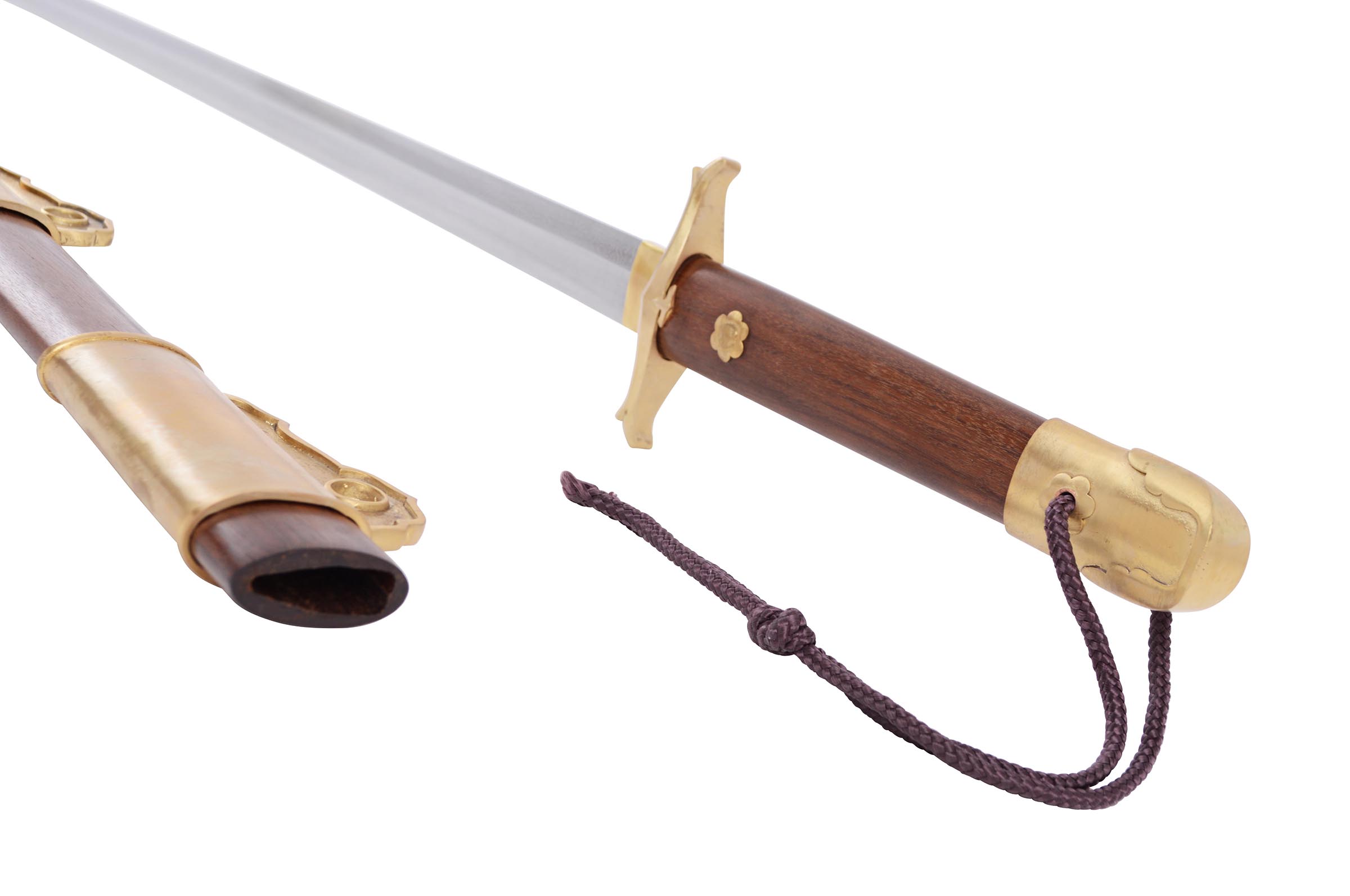

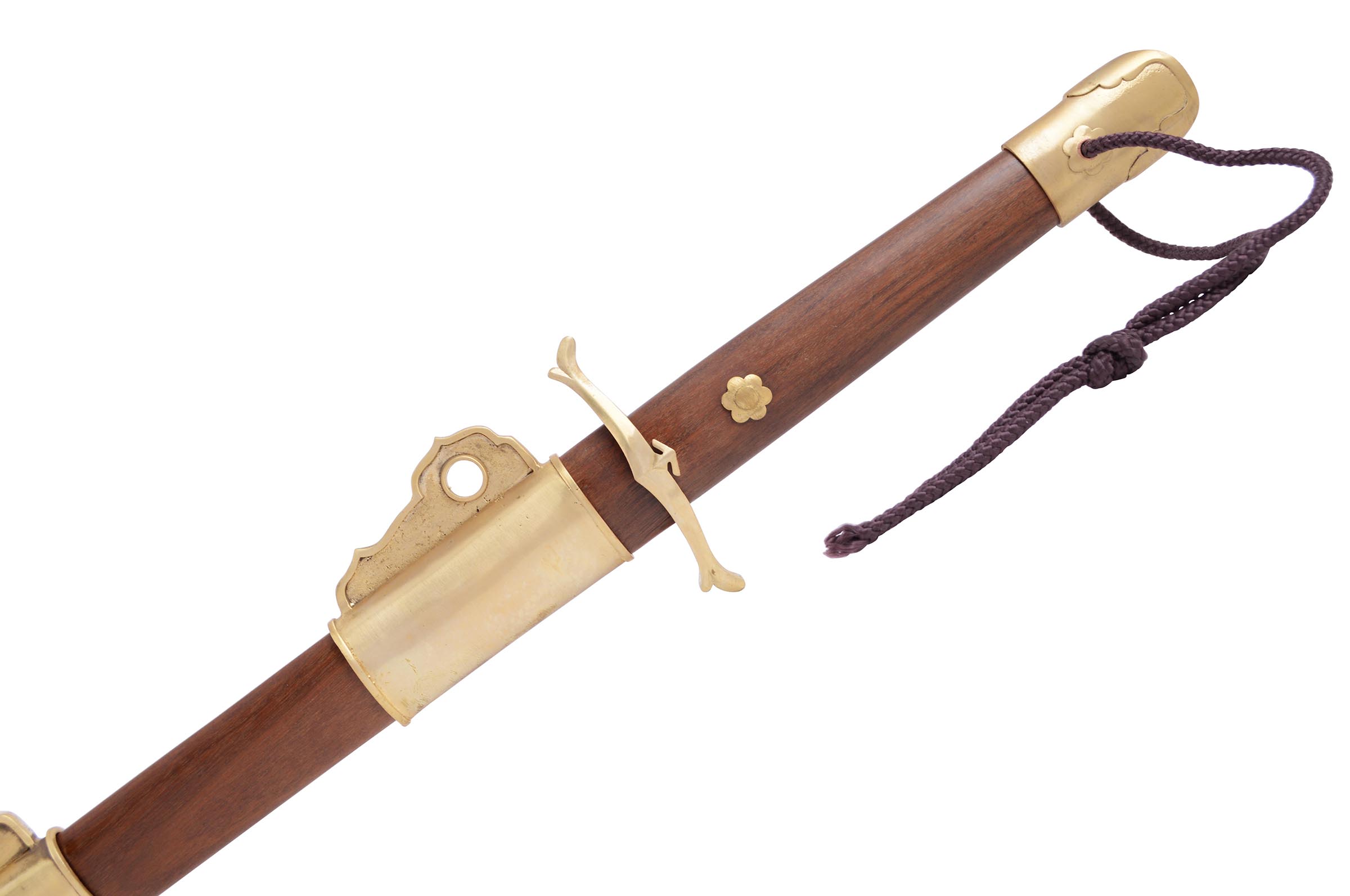

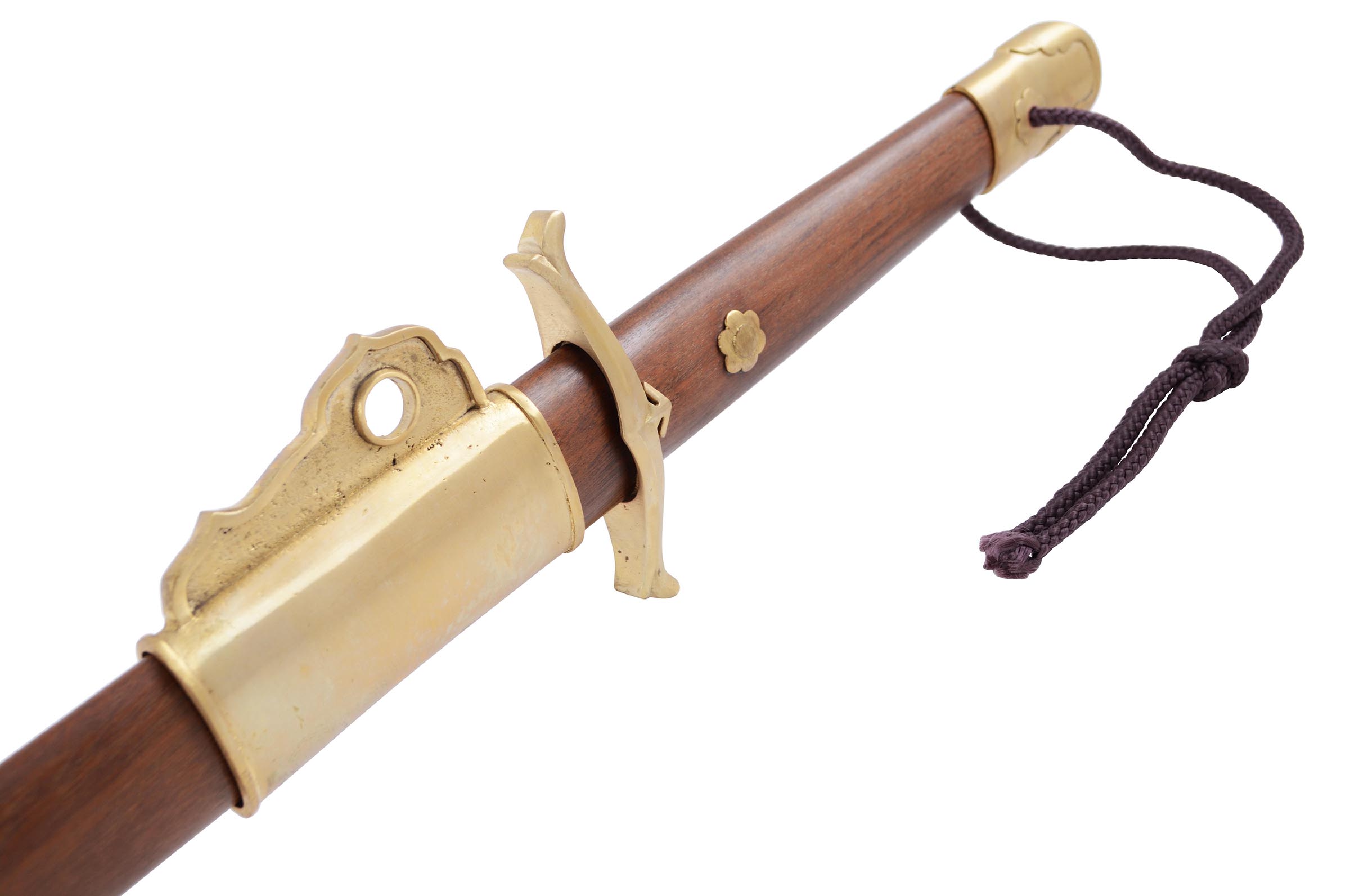

- Elegant brass fittings that give a subtle visual effect in two tones
| 1060 carbon steel | T9 tungsten-vanadium high-speed tool steel | |
| Carbon | 0,55-0,660 % | 0,85-0,94 % |
| Silicon | 0 % | <=0,35 % |
| Manganese | 0,60-0,90 % | <=0,40 % |
| Phosphorus | <=0,040 % | <=0,035 % |
| Sulfur | <=0,050 % | <=0,030 % |
| Tungsten | 0 % | <= 0,30 % |
| Vanadium | 0 % | <= 0,02 % |
| Chromium | 0 % | <=0,25 % |
| Nickel | 0 % | <=0,20 % |
| Copper | 0 % | <=0,25 % |
| Molybdenum | 0 % | <= 0,20 % |
Product #47010
- Discipline :
- Wushu, Taiji
- Composition :
- Damascus steel, Wood, Zamak (zinc-aluminum)
- Color :
- Wood, Gold
- Scabbard included :
- Yes
- Blade type :
- Sharpened blade, Rigid blade
- Blade length :
- 74 cm
- Balance point, from the guard (+/- ½cm) :
- 15 cm
- Blade composition :
- Acier feuilleté
- Discount on cart :
- Yes
- Estimated delivery :
- undetermined
- Paypal Payment :
- Not allowed
| |
| Product in stock in our warehouse ? | not in stock in our warehouse |
| Procurement lead time | - |
| Order preparation time | 0 to 2 working days |
| Shipping time | 1 to 2 working days (to France) |
| Delivery date estimated | undetermined |
